Twists up to 750 GHz

WR3 Waveguide Twist 220-325 GHz
WR3 Waveguide Twist 220-325 GHz

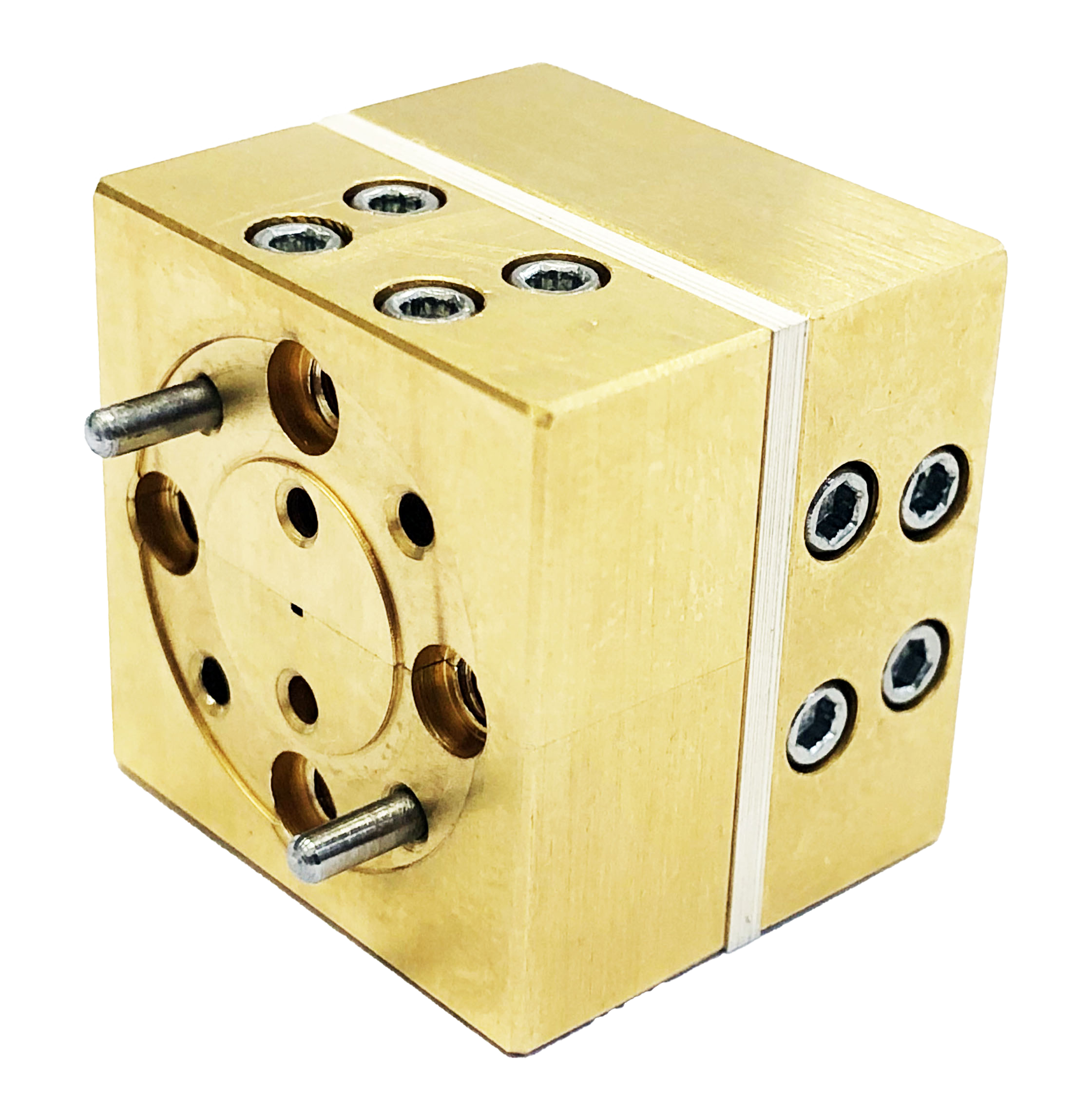

WR3 Waveguide Twist Split Block version 220-325 GHz

Beschreibung

Waveguide Twists up to 750 GHz – Precision Waveguide Orientation Solutions

Frequency Ranges and Waveguide Bands

Our Waveguide Twists are available for waveguide bands from WR430 to WR1.5, offering reliable performance across a broad frequency range for scientific, industrial, and communication systems.

Twist Angle Options

  • 90° Waveguide Twists – For complete polarization rotation.
  • 45° Waveguide Twists – For partial polarization adjustment.

Design Versions

  • Flanged Waveguide Twist Version – Easy integration into waveguide systems.
  • Split-Block Waveguide Twist Version – High mechanical stability and precision.

Custom Solutions and Plating Options

We offer custom solutions upon request, with different plating options available to meet specific requirements for corrosion resistance and conductivity.

Key Features:

  • Frequency range up to 750 GHz
  • Waveguide bands from WR430 to WR1.5
  • 45° and 90° twist angle options
  • Flanged and Split-Block designs
  • Low insertion loss and excellent return loss
  • Custom solutions and various platings available

Applications:

  • Communication Systems
  • Radar Systems
  • Scientific Research
  • Test and Measurement Equipment

Contact us today to learn more about our Waveguide Twists and how they can enhance your high-frequency applications.

bq-microwave provides high-quality Waveguide Twists designed to operate at frequencies up to 750 GHz, enabling seamless signal transmission while changing the polarization orientation of microwave signals. These components are crucial for aligning waveguide systems in high-frequency applications.
